Increasing Greenhouse Gas Emissions from Developing Countries

Summary.  The developing world generally has higher rates of population growth and economic development than do developed countries.  Energy use and greenhouse gas emissions of China and India, the most important examples of developing countries, have grown 4- to 6-fold from 1980 to 2009.  They are projected to continue growing rapidly in coming decades.

To the extent that such development continues without constraint on emissions of greenhouse gases, the world risks exceeding the limit of an increase in worldwide average temperature of 2ºC agreed to by the nations of the world.  Warming worldwide temperatures bring with them increased occurrence of extreme weather events that cause high levels of physical and economic harms.  Instead of expanding use of fossil fuels, the nations of the world should agree on new measures to “decarbonize” energy production and limit greenhouse gas emissions, thereby constraining planetary temperature rise within the agreed limit.

Introduction.  The use of energy, primarily provided by fossil fuels, across the globe has been expanding inexorably over past decades, and is forecast to continue growing by large amounts in coming decades.  Correspondingly the rate of emission of resulting greenhouse gases is also rising dramatically.  Most of this growth originates in the developing countries of the world, which generally are expanding both in their populations and in their economic activity.  Both factors contribute to expanding demand for energy.  This post examines these issues.

Many points are summarized in the main body of this post, with expanded information and data provided in the Details section at the end.



Historical trends for energy use and CO₂ emissions for China and India.  China and India are the largest countries among the non-OECD nations (OECD, Organization for Economic Cooperation and Development, considered to be developed countries; see Note 1; non-OECD countries considered to be developing countries).  They have been growing rapidly in economic productivity, energy use and greenhouse gas emissions over the last two decades.  This post exemplifies the expansion of the energy economies of developing countries by focusing on these two countries.

In 2009 China was the largest, and India was the fourth largest, consumer of energy in the world (U. S. Energy Information Agency (USEIA) India analysis, Nov. 21, 2011).  As India’s population expands and the national economies of both countries grow (see population and GDP tables below in the section Projected future trends), energy demand is expected to rise significantly.

Past growth in use of fossil fuels by China and India is summarized here.  For more details and graphics please see the Details section below.

Generally, use of fossil fuels, and especially of coal and oil, has grown 4- to 6-fold, or even more, from 1980 to 2009.  Emissions of CO₂, the greenhouse gas that is the product of burning fossil fuels, likewise grew at comparable rates.

Energy use and emissions for the period from 1997, the year the Kyoto Protocol was agreed on, and the last year in the graphs below, 2009, are evaluated.  The date of the Kyoto Protocol is used here, because, as developing countries, China and India were excluded from coverage by its terms while many developed countries would be bound by it.  For this period:

• coal use by China grew by 241%, and use by India grew by 195%;
• China’s use of oil grew 213% from 1997 to 2009, and India’s grew by 176%; and
• CO₂ emissions from China grew by 250% between 1997 and 2009, and from India by 184%.

Coal is the predominant source of energy in China by far.  Among renewable sources, hydroelectric power constituted 6% of energy consumption.

Coal is a large source of energy for India as well as for China.  It is also significant that 24% of energy in India comes from combustible biomass, much of which originates from animal waste.

Neither country had large energy sources from renewable sources such as wind and solar power as of 2008-2009.

Projected future trends

World population growth.  The USEIA issued its International Energy Outlook 2011 (IEO) in September 2011.  The IEO projects population increases among countries of the world in its International Energy Outlook 2011.  Data extracted from this report for the U. S., OECD, China and India include the following:

                   Population growth

Region/country	2008 Actual	2035 Projection	Av. annual % chg.
U.S.	305	390	0.9
OECD	1,209	1,358	0.5
China	1,328	1,450	0.3
India	1,181	1,528	1.0
World	6,731	8,453	0.9

Source: USEIA, International Energy Outlook 2011  http://www.eia.gov/forecasts/ieo/pdf/0484(2011).pdf

World per capita gross domestic product (GDP).  The USEIA projects the growth in economic activity among countries and regions of the world in its IEO.  Data for per capita GDP include the following:

Per capita GDP expressed in purchasing power parity, using 2005 USD

Region/country	2008 Actual	2035 Projection	Av. annual % chg.
U.S.	43,349	65,862	1.5
OECD	30,601	47,887	1.7
China	5,777	23,694	5.7
India	2,692	8,792	4.6
World	9,773	19,123	2.6

Source: USEIA, International Energy Outlook 2011  http://www.eia.gov/forecasts/ieo/pdf/0484(2011).pdf

Projected future growth in energy use.  (See Details for further information.)

Projections of future energy use drawn from the IEO relate to the USEIA’s Reference case, in which it is assumed that economic growth continues as at present, and that no policy changes are made in the future that are not currently operative.  This is frequently referred to as “business-as-usual”.

In its press release, USEIA states that, largely because of strong economic growth in developing countries (non-OECD countries) including the two leaders, China and India, the world’s energy use is expected to increase 53% between 2008 and 2035.  Energy use is closely tied to the growth in economic activity; the table above shows that per capita GDP is projected to grow by 5.7%/yr in China, and by 4.6%/yr in India, much more rapidly than in developed countries. These two countries alone will be responsible for half of the world’s increase in energy use.

An extract of data presented in the IEO is tabulated in the Details section at the end of this post, following the Discussion.  A graphical presentation of projected energy use is shown here.

Source: USEIA, International Energy Outlook 2011  http://www.eia.gov/forecasts/ieo/pdf/0484(2011).pdf

China and India consumed 21% of the world’s energy in 2008.  Their energy use is expected to more than double over the period shown, constituting 31% of the world’s energy use in 2035.  The annualized rate of increase across all non-OECD countries is 2.3%, whereas for the developed countries (OECD), the annualized rate of increase is only 0.6% (see the graphic above).

Projected growth in CO₂ emissions.  The IEO includes predictions for growth in CO₂ emissions originating from fossil fuels.  Data from the table in the Details section are shown in the chart below.

Source: USEIA, International Energy Outlook 2011  http://www.eia.gov/forecasts/ieo/pdf/0484(2011).pdf

Emissions from India grow by 208% from 2008 to 2035, and those from China grow by 198%.  It is seen that emission growth from the U. S. and from the OECD as a whole are much more modest.  The nations of the European Union, included in the OECD, have embarked on an ambitious program (linked here and here) to reduce emissions by 80% by 2050.  Clearly this falls outside the assumptions of the USEIA Reference case, and is not reflected in the data for the OECD.

The International Energy Agency (IEA) published its World Energy Outlook 2011 (WEO 2011) on Nov. 9, 2011.  It includes projections based on three scenarios.  The Current Policy Scenario (CPS) assumes no additional emissions policies implemented beyond those already in place in 2011.  This inaction is projected to lead to an increase in long-term global average temperature of 6ºC (10.8ºF) by 2035.  The intermediate New Policies Scenario includes policies intended to reduce emissions, but not by enough to stabilize atmospheric CO₂ levels. It is projected to lead to an increase in long-term global average temperature of 3.5ºC (6.3ºF).  The 450 Policy Scenario (450 PS) implements strict controls on new emissions that are intended to stabilize the atmospheric CO₂ concentration at 450 parts per million; this is the level deemed adequate to keep the increase in long-term global average temperature within 2ºC (3.6ºF) above the pre-industrial level.  This upper limit is based on the Fourth Assessment Report of the Inter-governmental Panel on Climate Change (IPCC), which was issued in 2007.

The IEA graphic below compares projections of Total Primary Energy Supply by global regions for two scenarios, CPS and 450 PS.

Comparison of total world energy supply under the CPS and the 450 PS. Historical data for 1990 and 2008, and projected results under the two policies for 2015, 2020, 2025 and 2035.  Blue: OECD+ (developed countries); Green: OME, other major economies (developing countries); Purple: OC, other countries (developing countries); (see Note 2); Orange: Intl. bunkers, international air and marine transportation.

Source: IEA, 2011 Key World Energy Statistics; http://www.iea.org/textbase/nppdf/free/2011/key_world_energy_stats.pdf

The chart above illustrates annual rates of use of energy, indicating that each year large amounts of the greenhouse gas CO₂ are emitted.  Under CPS, the annual rate keeps increasing, adding to atmospheric concentrations of CO₂ at an ever-increasing rate.  Under 450 the annual rate appears to level off, but each year additional CO₂ still is emitted.

Nevertheless, it is seen that by 2035, adopting the stringent 450 Policy Scenario results in an overall projected decrease of 22% in total energy needed compared to CPS.  The largest reduction in energy use is from the large economies of the developing world (OME), about 23%; followed by reductions in energy use by other developing countries (OC), about 17%, and reductions by OECD+ (developed countries) of about 13%.

Discussion

The Cancun Agreements were the final product (text and press release) of the 2010 conference, held under the auspices of the United Nations, and were approved by all 193 nations except one.

Among the commitments made in Cancun, developing countries, on a voluntary basis, submitted “nationally appropriate mitigation actions” planned for coming years to the United Nations supervisory body.  Whereas many countries with smaller economies enumerated detailed goals and steps, countries such as China and India that are major emitters of greenhouse gases provided only brief, more generic, statements of goals (see the table below):

Country	Year for goal	Statement of goal
China	2020	Voluntary measures to reduce CO2 emissions per unit of gross domestic product (GDP; emissions intensity) by 40–45% compared to 2005, increase the share of non-fossil fuels in primary energy consumption to around 15%, and to increase forest coverage by 40 million hectares (99 million acres).
India	2020	Voluntary efforts to reduce emissions intensity of its GDP by 20–25% compared with the 2005 level, excluding emissions from agriculture.

Developing countries such as China have long stressed their improvement of energy intensity, a measure of increasing the efficiency of their use of energy.  Yet, as seen in this post, their absolute amounts of energy used and greenhouse gas emitted continue growing at significant rates, responding to the prodigious rate of expansion of their economies, improvement in energy intensity notwithstanding.

The IEA warned in WEO 2011, according to its press release, that the world will enter “an insecure, inefficient and high-carbon energy system” unless it implements strong new policies to lower future emissions of CO₂ and other greenhouse gases.  Recent developments that signal  this urgency include the Fukushima nuclear accident which has deflated enthusiasm for nuclear energy, turmoil in the Middle East which creates instability in oil supplies and costs, and a strong increase in energy demand in 2010 which led to record high emissions of CO₂.

Fatih Birol, IEA’s Chief Economist, points out that as time passes without significant action to mitigate emissions, the world is becoming “locked in” to a high-carbon energy infrastructure.  Up to the point of changing policy, all preexisting energy-producing and –consuming infrastructure commits the world to continuing its carbon-inefficient energy economy.  They continue to emit CO₂ annually during their service lifetimes according to their originally designed (less efficient) operating specifications.  This is illustrated in the following graphic, which considers that 2010 is the year of commitment.

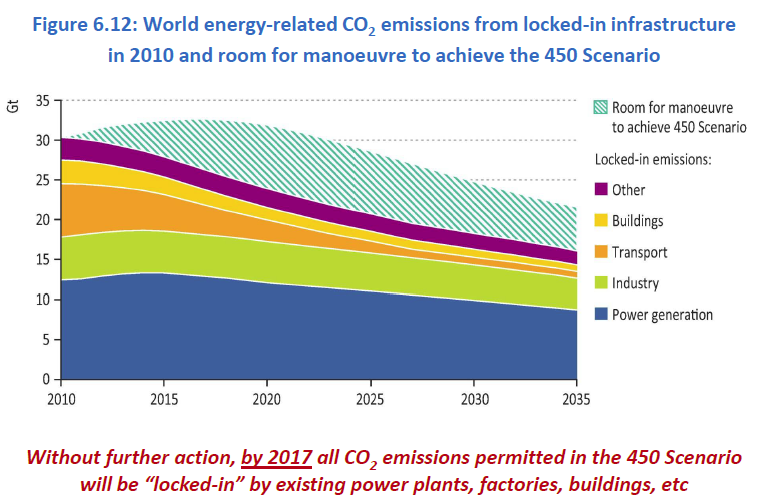

Lock-in of annual rates of CO₂ emissions from energy-producing and energy-consuming physical installations as of 2010, shown in the various SOLID colors.  Projected additional annual rates of emissions from facilities newly installed after 2010, allowable under the 450 Policy Scenario, are shown in the HATCHED GREEN area at the top of the diagram. 450 envisions that the annual rate of emissions reaches a maximum by 2017 and then begins declining.

© OECD/IEA 2011.  Source: IEA, World Energy Outlook 2011; http://www.worldenergyoutlook.org/docs/weo2011/key_graphs.pdf

In the graphic above emissions from committed infrastructure (solid colors) are projected to decrease year by year as the various facilities age and are removed from service.  The graphic illustrates the maneuvering leeway (green shading) in annual CO₂ emissions that are consistent with the 450 Policy Scenario, which is intended to ensure that the long-term average increase in global temperature is constrained to 2ºC (3.6ºF).  The IEA press release states

“Four-fifths of the total energy-related CO2 emissions permitted to 2035 in the 450 Scenario are already locked-in by existing capital stock…. Without further action by 2017, the energy-related infrastructure then in place would generate all the CO2 emissions allowed in the 450 Scenario up to 2035. Delaying action is a false economy: for every $1 of investment in cleaner technology that is avoided in the power sector before 2020, an additional $4.30 would need to be spent after 2020 to compensate for the increased emissions.”

The leeway emissions are the only portions of the world’s energy economy available for manipulation to reduce overall CO₂ emissions.

The Kyoto Protocol, covering many developed nations but not the U. S., expires in 2012.  It had been the goal of the U. N. conferences in Copenhagen (2009) and Cancun (2010) to negotiate a new treaty to follow Kyoto as it expired.  But the nations of the world could not agree on terms.  In 2011, at the Durban conference conference, this discord was so fundamental that now the goal has been pushed back to reach an agreement by 2015, with the objective of having it come into force by 2020.  Unfortunately, these dates are greatly extended from earlier timelines.  They permit greenhouse gases to be emitted unconstrained and to continue accumulating in the earth’s atmosphere without sanctions in the interim.  Because of the delay, climate scientists are concerned that the global average temperature will increase considerably more than previously hoped.  This would mean severe changes in climate and weather, leading to increased numbers and severity of extreme weather events.

Greenhouse gas emissions are a global problem, demanding a global solution.  Once emitted into the atmosphere, CO₂ and other greenhouse gases do not carry a label indicating where on the globe they originated from.  Emissions from any country become the greenhouse effect problem of every country.  The increase in the long-term global average temperature, and its attendant extremes of weather events, damages caused and expenses incurred, affect all the nations of the world.

Rather than continuing the unabated expansion of the use of fossil fuels, and incurring unforeseen expenses caused by extreme weather events, the nations of the world should be decarbonizing their energy.  Comparable amounts of capital could be invested and comparable numbers of new jobs could be created that would be directed to developing renewable sources of energy or to implementing “zero-emissions” use of fossil fuels (exemplified by the experimental technology of carbon capture and storage).  It behooves all nations to embark on greenhouse gas mitigation measures as soon as possible, and not to continue “business-as-usual”.

                      ===========================================

Details.

Historical trends for energy use and CO₂ emissions for China and India.

Trends for coal and oil use in China and India are shown below, as these are the principal fossil fuels used in each country for electricity generation and transportation, respectively.  Values for 1997, the year the Kyoto Protocol was agreed on, and the last year in the graph, 2009, are shown.  The date of the Kyoto Protocol is used here, because, as developing countries, China and India were excluded from coverage by its terms.

Use of coal is shown below.

Use of coal 1980-2009, million short tons/year, for China and India.  The scale for China runs from 0 to 3500, and that for India runs from 0 to 700.

Source: USEIA http://www.eia.gov/countries/img/charts_png/CH_coacon_img.png

http://www.eia.gov/countries/country-data.cfm?fips=IN#coal

From 1997 to 2009, coal use by China grew by 241%, and use by India grew by 195%.  For a portion of this period, it is believed that China was commissioning new coal-fired electricity plants at the rate of about two per week.

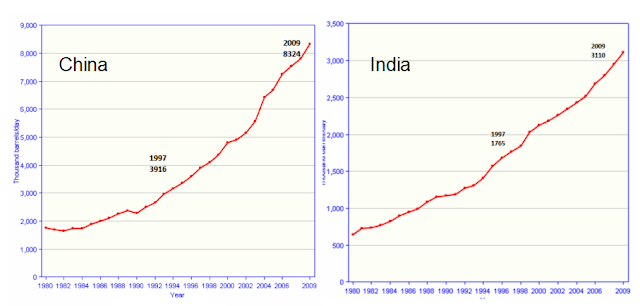

Total use of oil in thousands of barrels/day between 1980 and 2009 for China and India.  The scale for China runs from 0 to 9000, and that for India runs from 0 to 3500.

Source: USEIA http://www.eia.gov/countries/img/charts_png/CH_petcon_img.png

http://www.eia.gov/countries/country-data.cfm?fips=IN#pet

China’s use of oil grew 213% from 1997 to 2009, and India’s grew by 176%.

China’s use of petroleum increased a further 10% from 2009 to 2010, and is expected to grow at that rate in the next few years  (USEIA China Analysis 2011).  It produces considerable oil domestically, but also imports large amounts, currently about the same as is produced domestically.

The distribution of the sources of energy for China and India is shown in the chart below, for 2008 or 2009.

Source: USEIA. http://www.eia.gov/countries/cab.cfm?fips=CH;

http://www.eia.gov/countries/cab.cfm?fips=IN.

Coal is the predominant source of energy in China by far.  Among renewable sources, hydroelectric power constituted 6% of energy consumption; China is assertively developing this source.  The total amount of hydroelectric power will expand considerably in 2012 as all the turbines at the Three Gorges Dam begin operating.

The graphic shows that coal is a large source of energy for India as well as in China.  It is also significant that 24% of energy in India comes from combustible biomass, much of which originates from animal waste.

Other than hydroelectric power, neither country had large energy sources from renewable sources such as wind and solar power as of 2008-2009.

Carbon dioxide emissions attributed to the burning of fossil fuels for the two countries are shown below.

Total carbon dioxide emissions from use of fossil fuels 1980-2009 for China and India, million metric tons/year.  The scale for China runs from 0 to 8000, and that for India runs from 0 to 1800.

Source : USEIA http://www.eia.gov/countries/img/charts_png/CH_co2con_img.png

http://www.eia.gov/countries/country-data.cfm?fips=IN#cde

CO₂ emissions from China grew by 250% between 1997 and 2009, and from India by 184%.  It is noteworthy that, as expected, the trajectory of emissions from China closely resembles the pattern of its coal use (see earlier graphic, above).

Projected future growth in energy use.

Consumption of all fossil fuels is projected to grow dramatically during this period.  Use of coal is projected to increase from 139 quadrillion Btu in 2008 to 209 quadrillion Btu in 2035, a change of 50%.  China alone is responsible for 76% of the increase in use of coal.  India and other Asian countries also contribute significantly (19%) to this increase, at least in part because coal is cheaper to use than other sources of energy.

Use of energy in transportation of people and goods is projected to grow through 2035 in the Reference case, almost entirely from non-OECD countries.  As non-OECD countries grow economically, the demand for transportation services grows significantly, especially the demand for personal cars.  Energy consumption in transportation almost doubles, growing at a rate of 2.6%/yr in the non-OECD countries, but only at 0.3%/yr in OECD countries.

Renewable energy across the globe is provided largely by hydroelectric generation and wind; solar generation currently plays a much smaller role.  In OECD countries, the major growth in renewables through 2035 is expected to come from wind and solar power, as potential hydroelectric sites are already fully developed.  In non-OECD countries, however, hydroelectric generation is still growing at a fast pace as dam sites continue to be exploited.

Electricity generation in China is expanding very rapidly, and is expected to continue to do so (USEIA China Analysis 2011).   In 2008 the generating capacity was 797 GW of which almost 80% was generated from coal.  It is expected that by 2020 the capacity will double to 1,600 GW, and to generate 3 times as much electricity by 2035 as was produced in 2009.  To accommodate this increased capacity, the Chinese are also aggressively expanding their transmission grid.  Since most of the generating capacity comes from conventional thermal sources supplied largely by burning coal and natural gas, it is to be expected that emissions of CO₂ will increase correspondingly.  The government of China expects that thermal generation capacity will increase from 652 GW in 2009 to 1,000 GW in 2020.  Coal will remain the principal fuel because of its domestic abundance, although older plants will be decommissioned in favor of larger, more efficient generators.  Natural gas will play a small but increasing role in the future.

Among renewable sources, hydroelectric power plays a larger role in China than in any other country, and will continue to grow.  For instance the massive Three Gorges Dam will become fully operational in 2012.  Wind power is expanding at a rapid rate, but even so remains a miniscule fraction of China’s electric generating portfolio.

Electricity generation in India.  India had about 177 GW of generating capacity in place in 2008 (USEIA India analysis).  Conventional thermal generation (mostly coal) provided 80% of that, with hydroelectric generation providing most of the remainder.  Nuclear and renewable power provided only a few percent of India’s electricity.  About 35% of the population lacks access to electricity, mostly in rural areas, representing over 400 million people.  Even in the main cities there are frequent blackouts.

Projections of future energy use under the USEIA’s Reference case are drawn from IEO and tabulated here.

Source: USEIA, International Energy Outlook 2011  http://www.eia.gov/forecasts/ieo/pdf/0484(2011).pdf

                   ===============================================

Notes:

1. Current OECD member countries included in this IEO are the United States, Canada, Mexico, Austria, Belgium, Chile, Czech Republic, Denmark,

Finland, France, Germany, Greece, Hungary, Iceland, Ireland, Italy, Luxembourg, the Netherlands, Norway, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden, Switzerland, Turkey, the United Kingdom, Japan, South Korea, Australia, and New Zealand.

2. OECD+: OECD as in Note 1 plus Bulgaria, Cyprus, Latvia, Lithuania, Malta and Romania;

OME (other major economies), Brazil, China, India, Indonesia, Russian Federation and Middle East;

OC (other countries), the world other than OECD+ and OME.

© 2011 Henry Auer
